HEVC 4K UHD Camera Transmitter

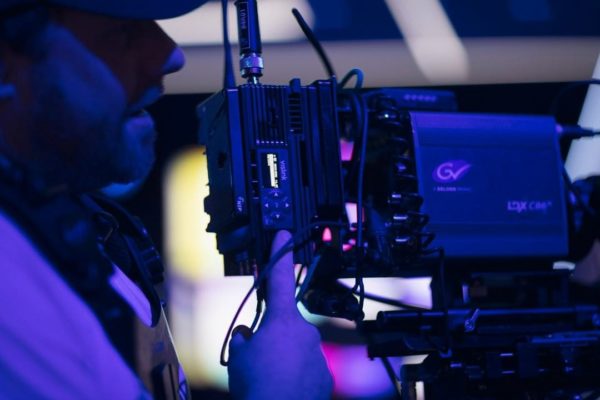

The HCAM is highly flexible and features configurable mounting options and video interfaces, allowing the unit to be mounted to broadcast cameras for sporting events, ENG cameras for news and even prosumer cameras to broaden the market reach.

With user interchangeable RF modules and a range of software options, the HCAM continues the line of innovative, high performance wireless camera systems from Vislink.

Product Features

  • HEVC/UHD Very Low Latency Encoder
  • Interchangeable, futureproof dual SFP modules supporting Quad 3/6/12G SDI/HDMI/Fiber Optic/SMPTE 2022-6 HD-SDI over IP interfaces
  • Integrated Camera Control with FocalPoint Compatibility
  • Direct-docking V-Lock & Anton Bauer battery plates with integral power feed through
  • Wi-Fi & Bluetooth control via dedicated Android & iOS Application
  • ETSI compliant to proposed EN302-064 V2.1.1 regulations

Vislink HCAM 4K Technical Specifications

RF Parameters
Frequency Band

  • 1.300–1.700 GHz*
  • 1.950–2.700 GHz*
  • 3.200–3.900 GHz*
  • 4.400–5.000 GHz
  • 6.425–7.125 GHz
  • 6.800–7.500 GHz
  • 7.200-7.750 GHz

*pre-distortion correction
Transmit Power

  • Adjustable 10 to 250 mW up to 3.9 GHz*
  • Adjustable 10 to 100 mW above 3.9 GHz*

*or add Barrel Booster option

Frequency Selection

  • Manual selection & 16 pre-set channels

Modulation

  • DVB-T
  • LMS-T

UHF Receiver

  • 410 to 490 MHz frequency range
  • FocalPoint camera control compatibility
Modulation Modes

  • QPSK, 16QAM, 64QAM
  • FEC:1/2, 2/3, 3/4, 5/6, 7/8
  • Guard interval:1/32, 1/16, 1/8, 1/4

Data Rate

  • DVB-T 4.98 to 31.7 Mbit/s
  • LMS-T 2.90 to 43 Mbit/s, bandwidth dependent (licensed option)
Bandwidth

  • DVB-T bandwidths of 6/7/8 MHz
  • LMS-T bandwidths of 3/4/5/6/7/8/10/12/14/16/20 or 24 MHz* with two carrier density options
  • Digital pre-distortion for enhanced adjacent channel performance**

*Licensed option
**Frequency permitting

Video & Audio Parameters

Video Encoder Profiles

  • HEVC (H.265) UHD, HD & SD
  • Main, Main 10, Main 4:2:2 10
  • 4K Native and UHD (1 Service)
  • HD (Up to 4 Services)5
  • SD (Up to 4 Services)5
  • MPEG-4 AVC (H.264) HD & SD
  • Main, High, Baseline up to
  • Level 5.2, High 10/High 4:2:2
  • MPEG-2 (H.262) HD & SD
  • 4:2:0 8 bit, up to 1080i60
Video Inputs

  • 2 SFP+ module slots supporting electrical and optical interfaces

Video Formats

  • 480i@29.97
  • 576i@25
  • 720p@50/59.94/60
  • 1080i@50/59.94/60
  • 1080p@23.98/24/25/29.97/ 30/50/59.94/60
  • 2160p@23.98/24/25/29.97/ 30/50/59.94/60
Audio Inputs

  • Embedded audio over SDI/HDSDI/3G SDI/6G SDI/ 12G SDI
  • 1x analogue audio stereo pair configured as Mic/Line level
  • Mic/Line level support with phantom power

Audio Encoding

  • AAC (AAC-LC & HE-AAC)
  • MPEG-1 (Layer 1 & Layer 2)
  • Dolby E Passthrough
  • Linear PCM Passthrough
Latency

  • Single frame (4K UHD/1080p)

Scrambling

  • BISS-1
  • BISS-E Injected
  • BISS-E Buried ID
HCAM Connectors

2x SFP+ module slots supporting electrical and optical interfaces carrying:

  • 4x SDI SMPTE-259M
  • 4x HD-SDI SMPTE-292M
  • 4x 3G-SDI SMPTE-424M
  • 2x 6G-SDI SMPTE-2081
  • 1x 12G-SDI SMPTE-2082
Power Connector:

  • 2-pin LEMO socket

Audio Connector:

  • 5-pin LEMO socket

Camera Cont. & ASI Connector:

  • 7-pin LEMO socket
Data & Tally Connector:

  • 3-pin LEMO socket

Ethernet Control Connector:

  • RJ45 10/100

USB Connector:

  • Micro-AB USB 2.0
RF Output Connector:

  • 50 Ω N-Type (M)

UHF Input Connector:

  • 50 Ω SMA (F)
Flexibility & Power Supply
Power:

  • Extended operation voltage range, 10V to 32.2V DC
  • Power connector to connect to D-Tap power source
  • Can be powered with optional IDX or Anton Bauer battery plates
Power Consumption:

  • 35W max.
ASI:

  • Input for service multiplexing (Remux)
  • OutputInput and Output on multifunction connector

PIDS:

  • PIDs user configurable
User Interface:

  • OLED display for enhanced visibility
  • Ethernet control via internal webserver
  • WiFi connectivity & control via internal webserver
