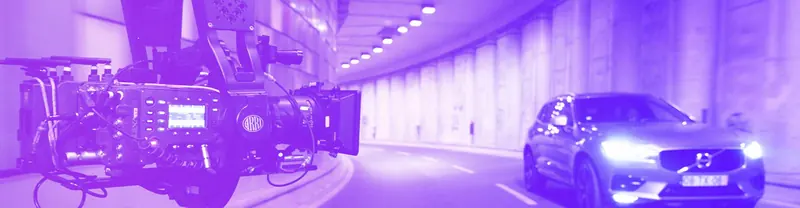

ARRI SRH-3 stabilized remote head filming a car in a tunnel, violet grade

ARRI · Stabilized remote head

ARRI SRH-3

Stabilized Remote Head

At a glance

Max. payload
30 kg / 66 lb
Weight
9.0 kg / 19.8 lb
Stabilized axes
3 (pan, tilt, roll)
Max. pan & tilt rate
240° / sec

ARRI SRH-3 Stabilized Remote Head

Overview

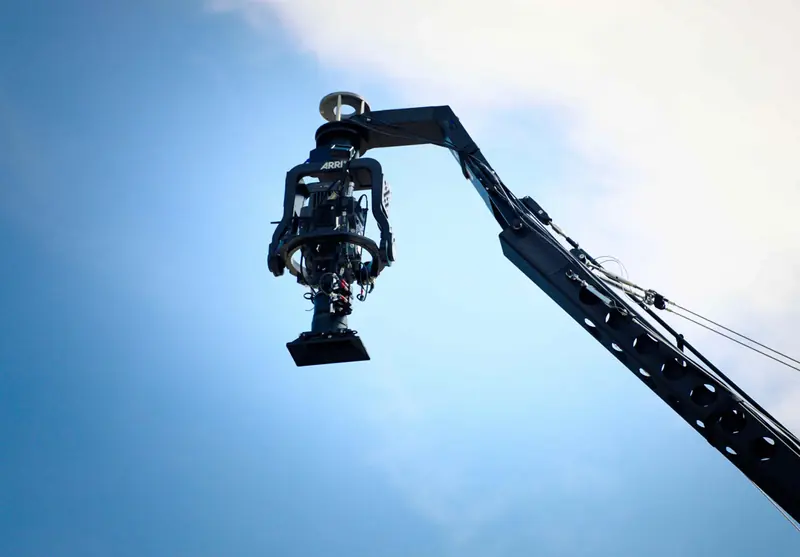

The SRH-3 is a three-axis fully stabilized remote head allowing for cameras to go where no person can with increased flexibility and ease. Whether it be on set, in a studio, or at an event, our new intelligent and adaptive Stabilized Remote Head SRH-3 has the full force of ARRI technology behind it. The Stabilized Remote Head SRH-3 fills a niche while offering top quality and performance.

Moviecrane Greece always offers cutting edge tech and solutions for the movie filming industry in Europe and the SRH-3 is our latest addition to the equipment range

High Payload – Lightweight Design

The fully stabilized SRH-3 three-axis remote control head can accommodate payloads of up to 30 kg / 66lb. The compact and lightweight design, only 9 kg / 19.8 lb offers an excellent payload to own weight ratio. The integrated LBUS offers future proof solutions and workflows.

Smart and Adaptive System

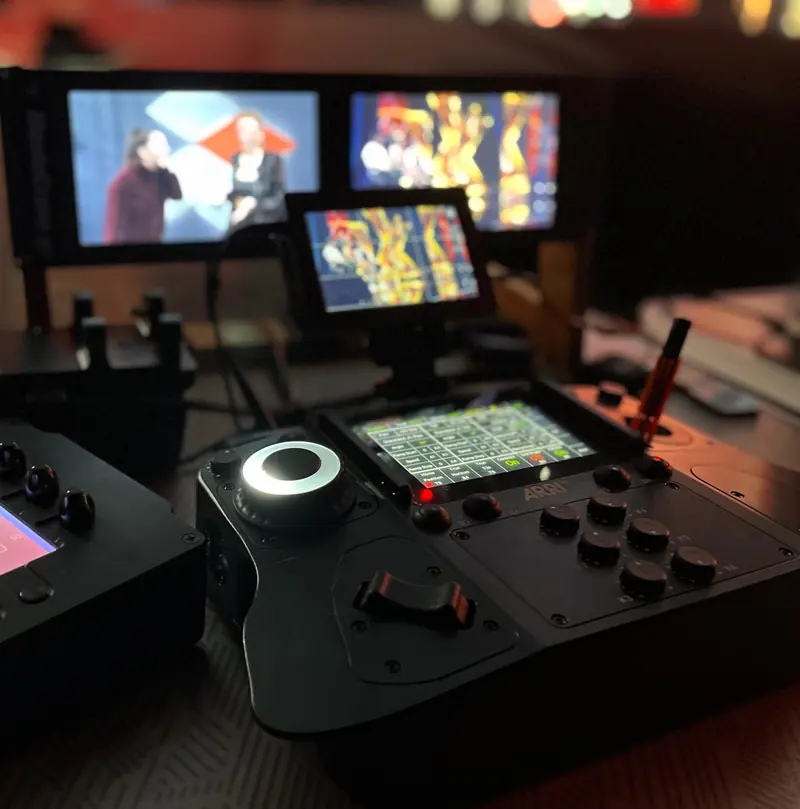

To provide outstanding stabilization, the motors inside the ARRI Stabilized Remote Head SRH-3 can compensate for external centrifugal force by adding extra motor power. SRH-3 can also be remote controlled with its newly designed, joystick based ARRI SRH-3 control board, with optional wheels.

Available optional for operate with:

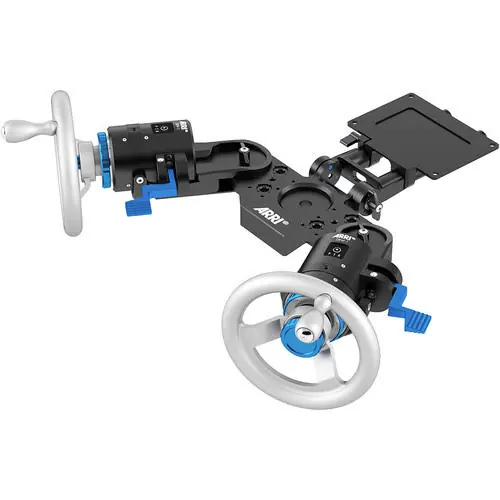

ARRI Digital Remote Wheels
The ARRI Digital Remote Wheels

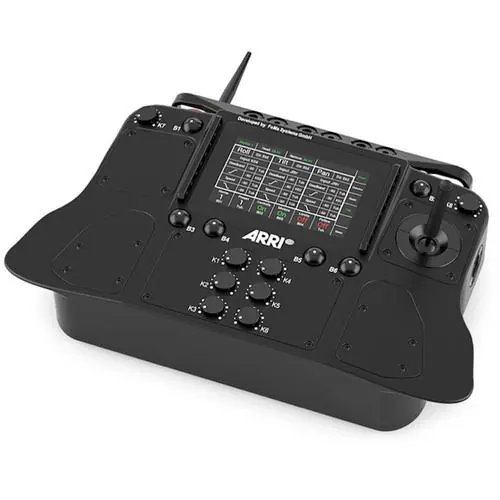

ARRI remote set control panel
The Remote set Control Panel

Videos

ARRI SRH-3: Compact, lightweight and sturdy

Watch on YouTube

ATX Grip Ultra Arm camera car with ARRI SRH-3 head – promo

Watch on YouTube

Arri SRH-3 Technical Specifications Data

Stabilized Axis
3 (Pan, Tilt, Roll)
Max. Payload
up to 30Kg/66lbs
Height
60.8cm/23.93in
Width
41.2cm/16.22in
Depth Head
13cm/5.12in
Depth Base
16.5cm/6.49in
Ring Diameter
26cm/10.23in
Ring Height Centre
20.9cm/8.23in
Weight
9.0Kg/19.8lb
Max Tilt Range
+60° / -110°
Max Roll Range
+/- 90°
Max Pan Range
540° +/- 270°
Max Pan Rate
240° / sec
Max Tilt Rate
240° / sec
Operating Voltage Head
24V – 36V
Output Camera
12V & 24V
Current
10Amps
Environmental
-20° C to +50° C / -4° F to 122° F

Arri SRH-3 has LBUS Socket, RS Socket and it is SAM plates compatible

Rental enquiry

Need the ARRI SRH-3 Stabilized Remote Head for your production?

Tell us about your shoot — dates, location and camera package — and we will get back to you. Equipment is available with our experienced crew, for productions in Greece and abroad.
