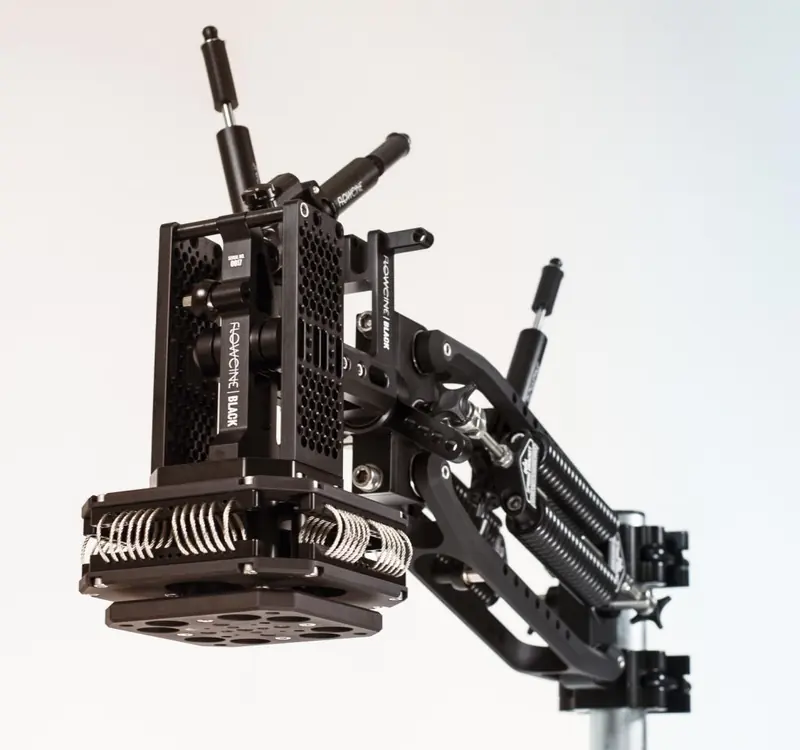

Flowcine The Black Arm

The damping action of all axes, vertical, tilt and roll is created by custom made actuator hydraulic dampers that are fully adjustable.

STANDARD OR COMPLETE

Each Black arm ships with one anti-vibration mount (AVM). The main purpose of the AVM is to reduce high frequency vibrations, such as noise from a cars engine. In order to maximise the efficiency of the AVM, you should use the version that matches your load and conditions.
There are two types of AVMs, the original Wire AVM and the new Tranquilizer.
The Wire AVMs comes in five different weight ranges, and is very easy to use. You just put the correct one on and go.

The Tranquilizer has many adjustments to fine tune it’s performance, and may give better results if you have the time and skills to configure it properly.
Pick the one that matches the total weight of everything (gimbal, camera and accessories) you will hang on to the Black arm.

Mounting the Arm

Mounting the Black arm is as simple as clamping it on to a standard 48-52mm speed rail. You build a rig onto your vehicle, using standard grip components like speed rail and dual clamps, possibly using Flowcines Universal rack or Stub mount. Then you simply clamp the Black on there, with the two single clamps at the back of the arm.

There are several ways to attach your gimbal to the Black arm. The included base plate has hole patterns to match the Freefly Toad in a hole and Cinemilled Universal Ronin mount for easy attachment of the MoVI and Ronin gimbals. We also make a Mitchell female mount for gimbals that uses the Mitchell connector.

On each side of the Blacks head, there are cheese plates suitable to mount batteries or Kenyon gyros on.

Specifications

Shipping Weight: 40kg

Shipping Dimensions: 85 x 60 x 40 cm

Carrying and Travelling

The Black arm ships in the Pro case. It’s made in all-black, to perfectly match the Black arm. It features powder coated black metal corners, heavy duty recessed handles and butterfly catches. It also has wheels, so you can roll the case just like a cabin bag. To match the clean exterior, the foam in the Pro case is all black.
